Dynamic Dialysis

How it works

Dynamic dialysis is an exciting new technology that utilizes fluid dynamics to increase purification efficiency and improve large buffer handling, ideal for the production of fragile proteins, viscous fluids and polymer gels, such as hyaluronic acid. These closed, high-efficiency systems offer high concentration gradient dialysis without manual buffer changes and in-process sample handling.

Static dialysis

Defimedica_Lupa_3
Requires labor & planning
Defimedica_Mano_3
Manual buffer changes
Defimedica_Circulos_3
Low separation efficiency
Defimedica_Mira_03
Limited scalability
Defimedica_Bucle_03
Multiple sample handling
Defimedica_Candado_03
Open system

Dynamic dialysis

Defimedica_Reloj_03
Walk away convenience
Defimedica_Vaso_Loop_03
Continuous buffer changes
Defimedica_Circulos_enfrentados_03
Maximal separation efficiency
Defimedica_Diana_03
Easy scalability
Defimedica_Continuo_03
No in-process membrane handling
Defimedica_Serpiente_03
Closed system

Flow comparison

Static dialysis

Inefficient dialysis

Manual buffer changes lead to inefficient dialysis
Passage slows as solutes approach equilibrium
Requires buffer change to reestablish concentration gradient to drive dialysis
Longer dialysis duration may be required
Defimedica_grafico_02

Dynamic dialysis

More efficient dialysis

Continuous buffer changes flow leads to more efficient dialysis
Solutes never approach equilibrium
Maintains maximum concentration gradient and solute passage
Shorter overall dialysis duration possible

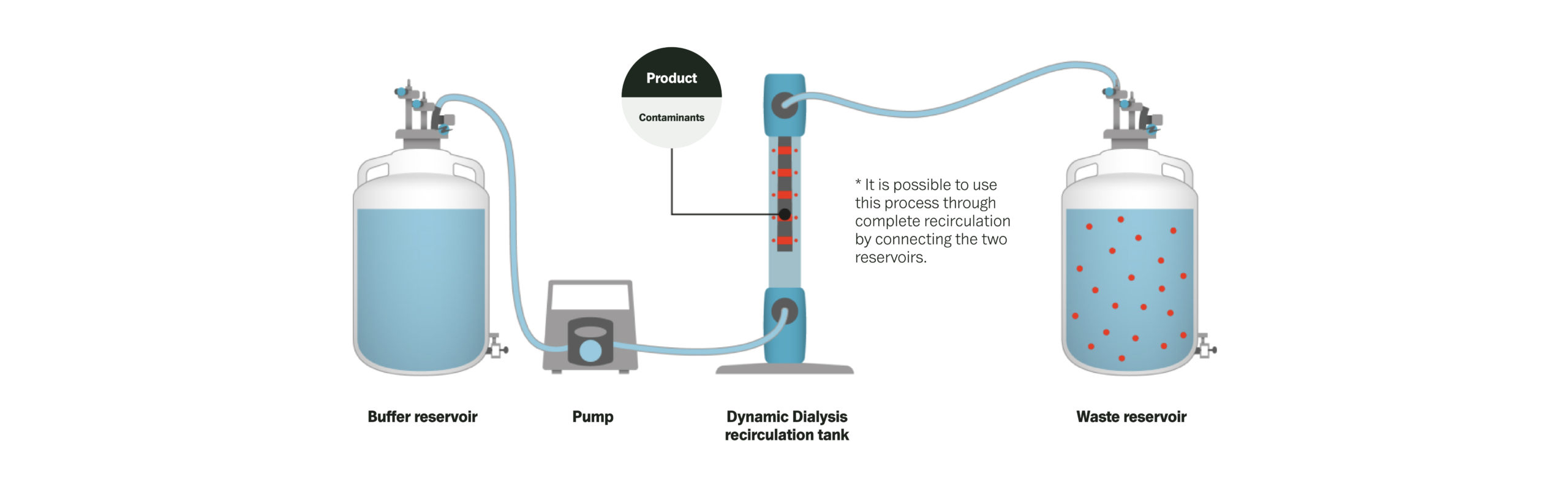

How dynamic dialysis works

Continuous buffer flow without the need for sample handling or manual buffer changes. Contaminants are expelled to waste. Clearance of contaminants from the tank helps maintain high concentration gradient.

1-IMG-how-it-works_Mesa-de-trabajo-1

Model of dynamic
dialysis process

Efficient scale-up of large colume dynamic-dialysis for purification. GMP batch production of shear-sensitive protein.

Defimedica_tabla
Defimedica_tabla_movil

Flow comparison

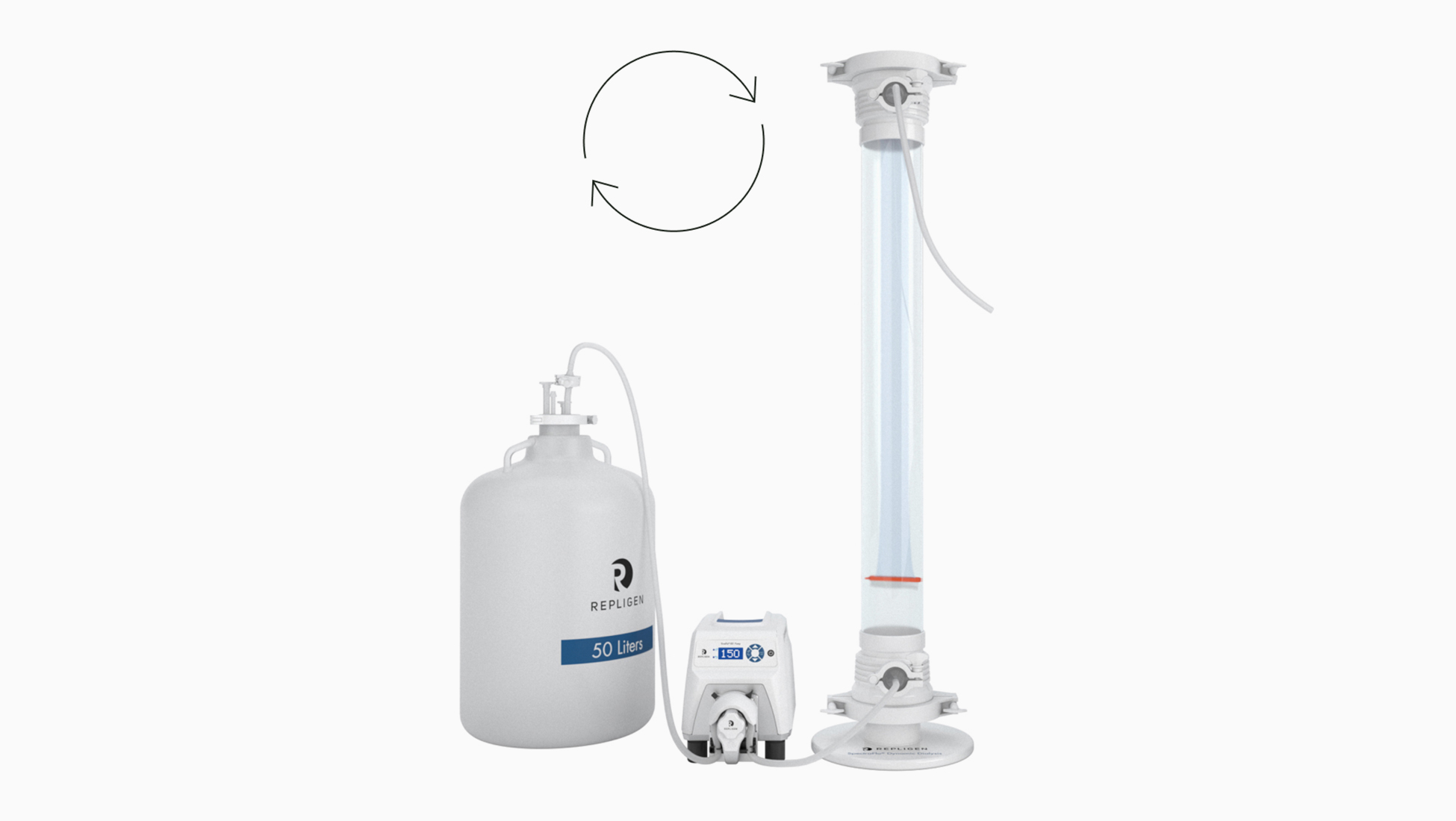

Recirculation mode

More efficient passage of dilute solute samples
Fast flow to promote buffer mixing (0.5-1.0 L/min)
Recirculation maintains buffer volume
Defimedica_HIW_01

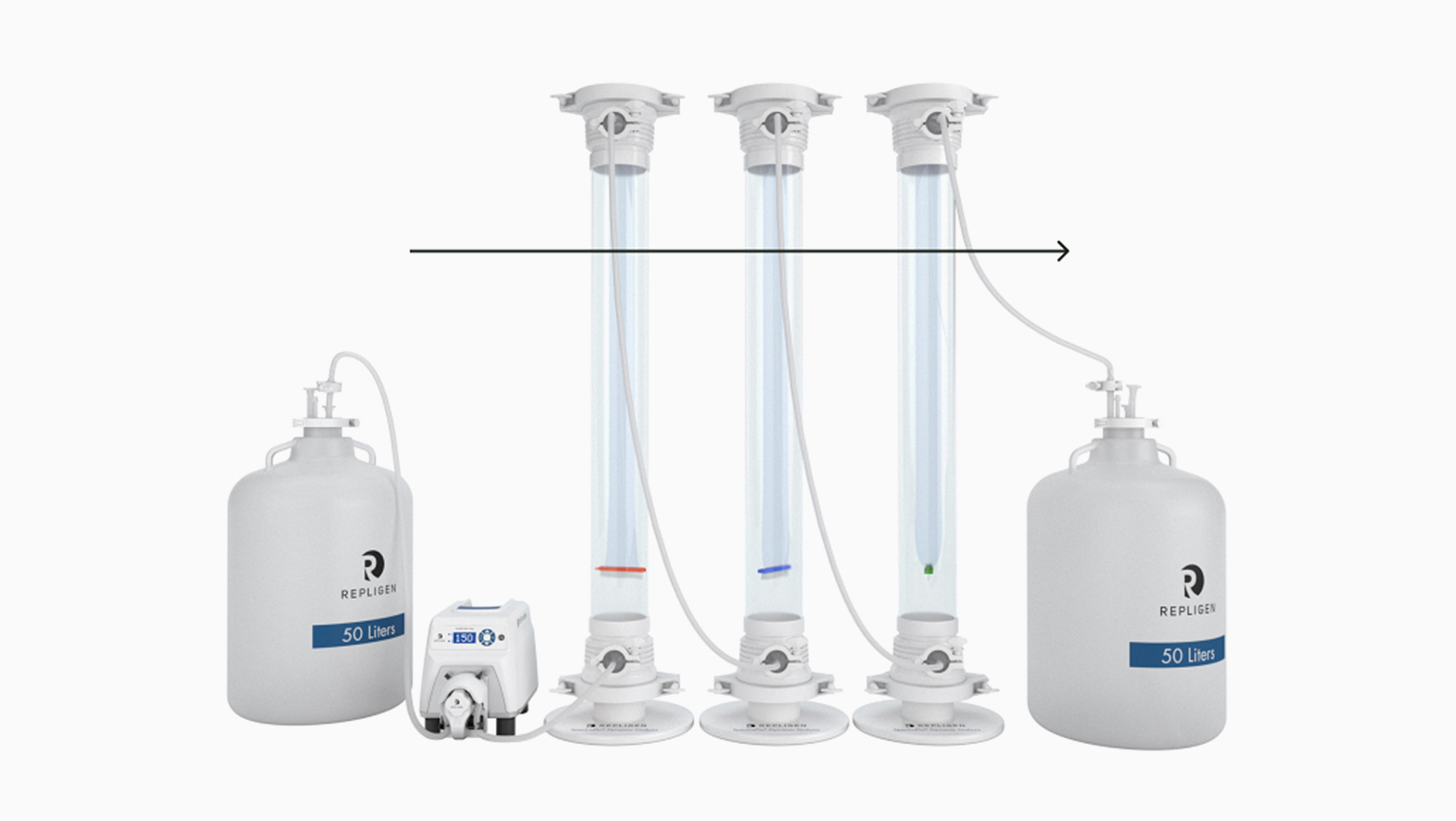

Recirculation mode

Continuous buffer changes flow leads to more efficient dialysis
Solutes never approach equilibrium
Maintains maximum concentration gradient and solute passage
Shorter overall dialysis duration possible
Defimedica_HIW_02
